起源の場所:
チェンデュー,中国
ブランド名:
ZEVAUTO
証明:
ISO, CE
モデル番号:
XZ110EV

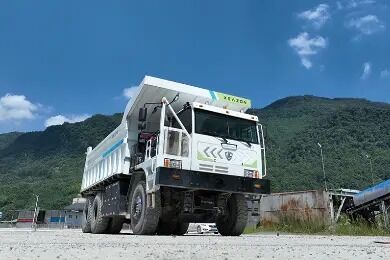

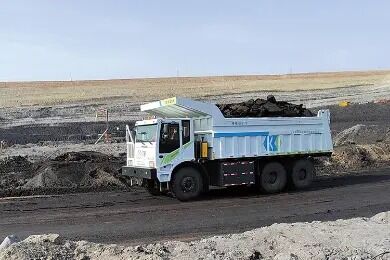

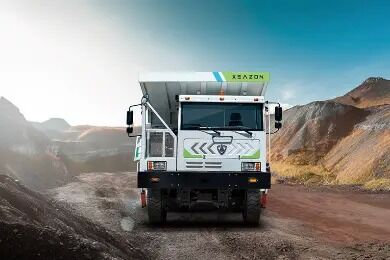

Zero-emission electric mining truck featuring long drive range and large 528kWh battery capacity, designed for efficient and environmentally friendly mining operations.
| Attribute | Value |
|---|---|
| Product name | Electric Mining Truck |
| Type | Zero Emission |
| Fuel type | Electric |
| Dimensions (mm) | 9950*3750*4200 |
| Wheelbase (mm) | 4500+1750 |
| Transmission | FAST 4-speed AMT mining truck transmission. Gear: 6.508-1.000 |
| Max speed | 40km/h |
| Suspension | Front oleo-pneumatic spring suspension + Rear leaf spring + Reinforced balanced suspension |
| Steering | Full hydraulic steering + emergency steering |
| Drive motor | Disc hub dual-motor/Lego (optional) |
| Brake system | Electric brake + drum brake, eddy current retarder (optional) |
| Motor rated/peak power (kW) | Disk hub: 495/800; Lego: 500/800 |
| Tire | 16.00R25 three-star rating (Techking). Other brands available. |
| Container volume (m³) | 42 (flat loading)/45 (stowage loading) |
| Vehicle dimension (mm) | 9400*3750*4000 |
|---|---|
| Minimum ground clearance | 400mm |
| Battery Capacity | 528kWh, LiFePo4 |
| Power motor | Dual motor 900K: 495kW/2000rpm/2380Nm |
Electric mining truck configurations available to meet specific operational requirements.
Headquartered in Chengdu, Sichuan province, China, ZEV is a group company specializing in the development, production, sales and market application of buses and coaches. Since its foundation in 2006, ZEV's culture of continuous innovation has made it a leading manufacturer in China.
With two production plants and annual capacity of 25,000 units, ZEV offers a 5m-18m product lineup of battery electric buses and coaches. In 2022, ZEV was awarded 825 units of 12m full electric city buses for Chengdu Transport Cooperation, with 400 units serving during the 31st FISU World University Games.
