Electric Mini Buses Zero Emission Minibus Passenger Capacity 11 Seaters Battery Capacity 80kwh

Electric Mini Buses Zero Emission Minibus Passenger Capacity 11 Seaters Battery Capacity 80kwh

起源の場所:

チェンデュー,中国

ブランド名:

ZEVAUTO

証明:

ISO, CE

モデル番号:

CDL6540URBEV

連絡 ください
引金 を 求め て ください
プロダクト細部
製品名:
電動ミニバス
タイプ:
公共の都市バス
Fuleタイプ:
都市バス
寸法(mm):
5405*2050*2880
車輪間距離 (mm):
3600
伝染 ; 感染:
自動トランスミッション
乗車定員:
11人座
前部/後部懸濁液(mm):
1005/800
アプローチ/出発(º):
14/23
最高速度:
69km/h
サスペンション:
リーフスプリング
操舵:
4方向調節可能な方向車付きのEPSシステム
制動:
前部と後部ディスクブレーキ
タイヤ:
225/75R16
支払及び船積みの言葉
最小注文数量
1
価格
USD 60000-70000 Unit
パッケージの詳細
ヌードパッキング
受渡し時間
25〜30営業日
支払条件
T/T、L/C
供給の能力
年間25000ユニット/
製品説明
Description

5.4m electric mini buses zero emission minibus public city bus passenger capacity 11seaters for urban transportation system. Small size with large Capacity. Ample spave, simple and refreshing interior, more comfortable driving and riding.

5.4 meter electric mininibus Zero emission minibus ev bus has inherent advantages in terms of turnning coeffient and road coocupancy and will be the main bus force to supplement capacity in the future cities.

Product Paramenter
Model CDL6540URBEV
Appearance parameters
Vehicle dimension (mm): 5405*2050*2880 Maximum speed(km/h) 69
Number of seats (persons): 10-11seats, may change with seat layout door arrangement, Power battery brand CATL
Steering LHD Battery Capacity 88.87kwh, LiFePo4
Transmission Auto transmission Suspension Leaf Spring and hydraulic telescopic shock absorber
Wheel base(mm) 4100 AC With
Body Structure Cathode coating Floor Structure Low entry
Mileage(A/C on, 65% loaded):

200-300km

May differ slightly, subject to actual running temperature, road condition, slope, driving behavior etc.

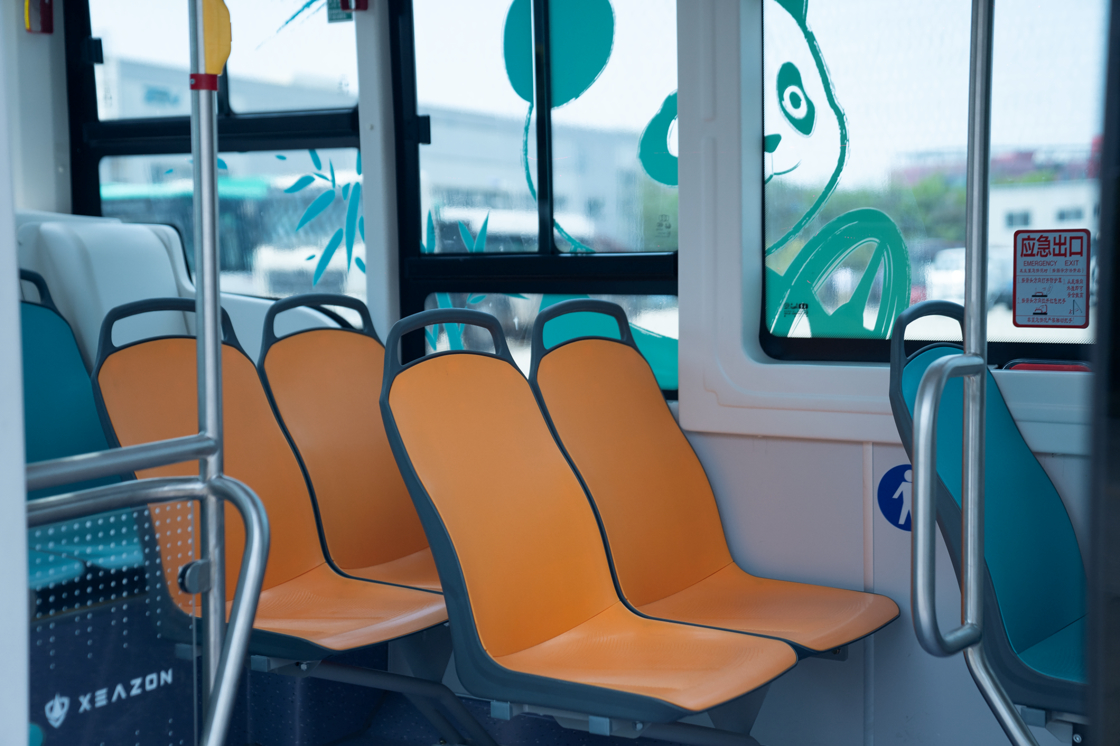

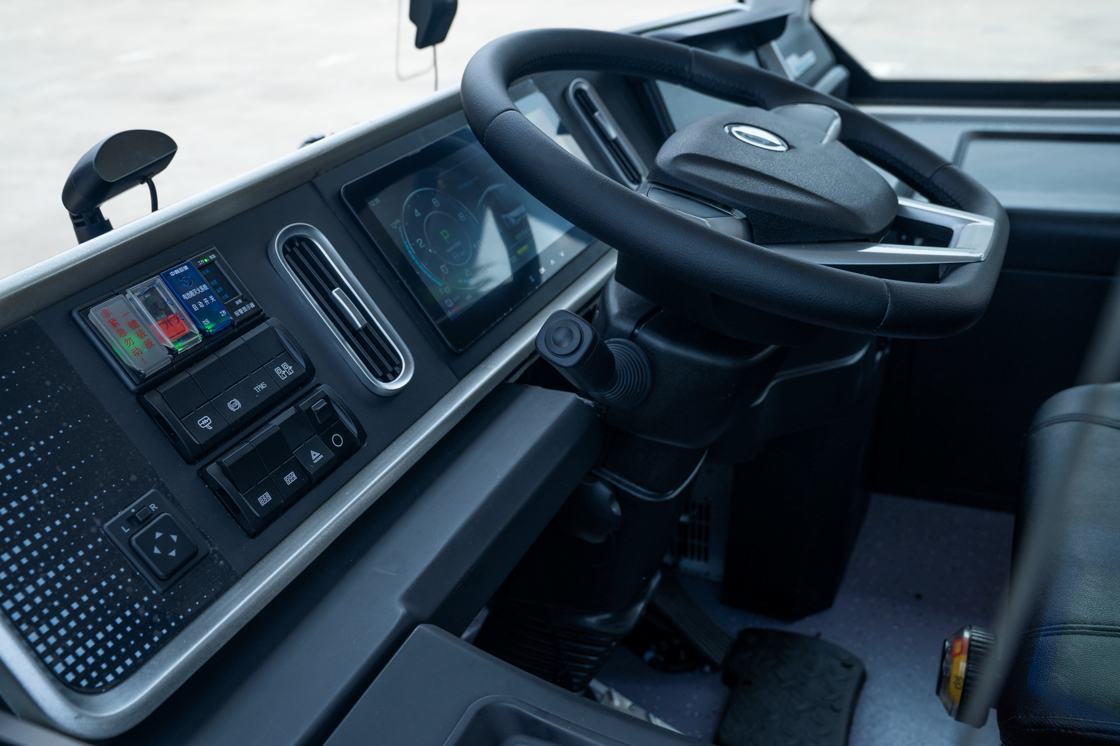

Interior display

A Comfortable, Stability And Safe Driving Environment

5.4m electric city bus combines modern design with meticulous attention to detail, blending ergonomics and comfort seamlessly. Key features include a nail-free construction throughout the vehicle, an aesthetically pleasing ceiling with ambient lighting, streamlined handholds, and a sleek design with hidden screws for a clean look, Handrails are thoughtfully attached to the sidewalls instead of the floor, enhancing both space and convenience. Every element is crafted to ensure a quiet, comfortable, and enjoyable journet for passengers.

Electric Mini Buses Zero Emission Minibus Passenger Capacity 11 Seaters Battery Capacity 80kwh 0

Advantages
  • Environmentally friendly with zero emission.
  • Powerful, matched with high-power drive motor, the gradeability can reach 19%
  • Reliable and durable vehicle.
  • Safe and comfortable driving experience.
  • Easy maintenance
  • Integrated control for driving at ease
  • The electric city bus with humanization design, high operation stability, excellent performance and reasonable internal layout to extend passenger's standing area.
  • Concise suspended hanging design of LED.
  • Openable front bumper for easy maintenance.
  • Delicate and neat layout of wiring harness.
Customization
  • Electric City Bus length:5.4m
  • Interior accept customization.
  • Cushioned passenger seats come as optional to meet the needs of different customer.
  • Passenger seats and curtains can be selected according to customer needs.
  • Solid Painting design. Color:optional
Company Info

Headquarted in Chengdu city, Sichuan province, China, ZEV is a group company specializing in the development, production, sales and market application of buses and coaches. From it's foundation in 2006,

ZEV's culture of continuois innovation has made it a leading manufacturer in China. Depending on the research platforms including the enterprise technology center, test center.

ZEV has 2 plants, annual production capacity reach 25000units. ZEV has formed a 5m-18m product lineup of battery electric buses and coaches, covering various segment markets. In 2022, ZEV was rewarded 825 units 12m full electric city bus bidding of Chengdu Transport Cooperation, among which 400units were in service during the 31st FUSU World University Games.
